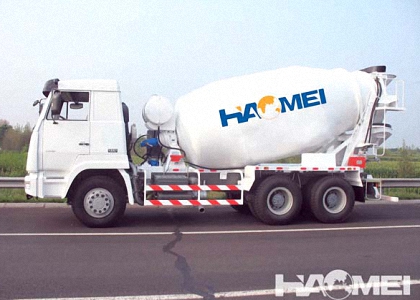

Haomei HM9-D concrete mixer truck for sale using continental modern style, beautiful appearance, reasonable structure, stable performance.
Stainless steel material for different parts of the tank, made by the famous chinese steel mills. Life is 1.5 times the average.
concrete mixer truck for sale use CNC plasma equipment and the world's leading tools to ensure that the key components manufacturing precision welding, the use of CNC automatic welding production lines to ensure that the welding strength. Modular design and assembly line to maintain product quality consistency. The structure adopts blasting pretreatment process; the painting work adopts the luxury car paint craft, and fully guarantees the quality of the vehicle according to the industry leading craft painting craft.
Models and Technical Specifications
|
Specification |
Model |
|
HM9-D |
|
Mixing Capacity |
9m3 |
|
Tank Volume |
14.7m3 |
|
Feeding Speed |
>=3.5 |
|
Discharging Speed |
>=3 |
|
Residual Ratio of Discharging |
<=0.5% |
|
Water Supply System |
Air Pressure |
|
Water Tank Volume |
300L |
|
Overall Dimension |
9050*2496*3750mm |
|
Chassis Model |
HOWO |
|
Clutch |
430 Monolithic dry type |
|
Min Ground Clearance |
314mm |
|
Max Speed |
90km/h |
|
Engine Max Output Power276 |
kw |
|
Emission Standard |
Euro ||| |
|
Rated Load |
13500kgs |
|
Overall Weight |
25000kgs |
|
Wheelbase |
3825+1350 |
