Classification Basis Of PLD Series Batching Machine
Brief Introduction：PLD series batching machine can be divided into different types according to different standards and the classification basis is as follows.
As the automatic proportioning equipment of the ration of sand and gravel in
concrete batching plants,
PLD series batching machine can be divided into different types according to different standards and the classification basis is as follows.
1. The Material Grading
According to the number of materials, PLD series batching machine can be divided into two bucket type, three bucket type, and four bucket type. We provide all the types to adapt to the storage needs of a variety of graded aggregate and the storage capacity per warehouse is generally 5-15 cubic meters.
2. The Matching Concrete Mixer Model
PLD series batching machine can be divided into PLD800, PLD1200, PLD1600, PLD2400, and PLD3200 according to the models of JS series concrete mixers.
In general, JS500 concrete mixer is matched with PLD800 concrete batching machine. JS750 concrete mixer is matched with PLD1200 concrete batching machine.
concrete batching machineJS1000 concrete mixer is matched with PLD1600 concrete batching machine. JS1500 concrete mixer is matched with PLD2400 concrete batching machine. JS2000 concrete mixer is matched with PLD3200 concrete batching machine.
3. The Operation Mode
According to the different control methods, concrete batching machine is divided into cylinder type and belt type.
The upper part of cylinder type batching machine is material hopper and the lower part is metering bucket. In order to increase the storage capacity, we usually set heightening plate. Cylinder type batching machine is suitable for large stationary concrete batching plant.

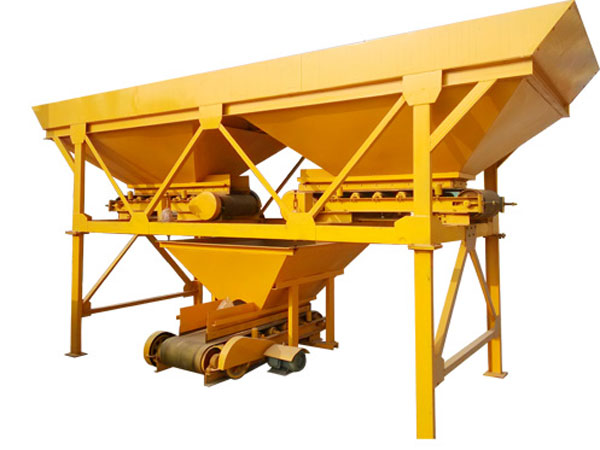

The upper part of belt type batching machine is raw material storage hopper and the lower part is metering hopper. The bottom is discharge conveying belt. The storage hopper is used for storing the materials to be matched. Belt type batching machine is mostly used in small or medium mobile concrete batching plant.
The PLD series batching machines of our company have the advantages of complete model, high precision, simple operation, etc. Welcome to inquire and feel free to contact us or leave us a message.
