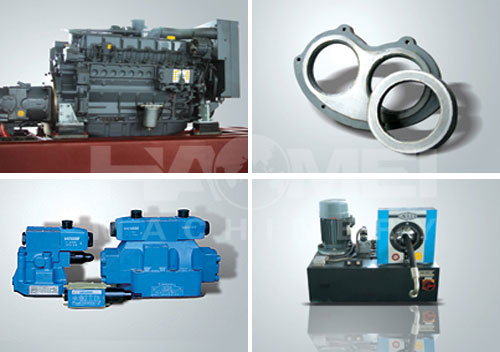

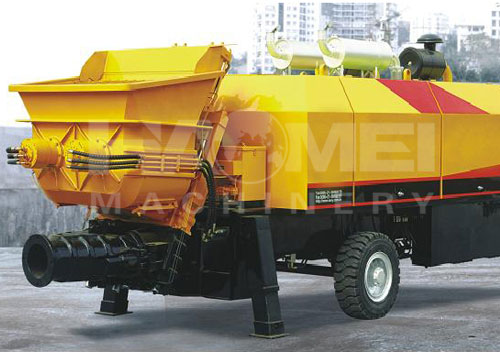

HBT90 hydraulic concrete pump are the main components of the power system, the hydraulic system, the lubrication system and the distribution system. All spare parts use advanced technology.
Hydraulic concrete pump is a new type of construction machinery. It can be used in some small and medium-sized places, such as housing construction, rural construction. At the same time hydraulic concrete pump can be used for highway, water conservancy and water conservancy projects.
1. It uses the international hydraulic drive wet spray technology.
2. Compared with the rotary pneumatic wet spraying machine, the machine has the advantages of smaller size, better performance, lower maintenance cost, more convenient operation, better flexibility and wide application range.
3. Equipped with wired remote control, the operation more convenient.
4. With anti-pump function, to eliminate the obstruction of the tube in a timely manner, a reliable shutdown within a short time.
|
Specification |
Value |
|
"Theory Concrete Output (Low / High Pressure)"(m3/h) |
90 |
|
"Concrete Pressure (Low / high pressure)"(Mpa) |
21 |
|
Hydraulic system pressure(Mpa) |
32 |
|
Rotation speed(r/min) |
1480 |
|
High / low pressure switch |
Yes |
|
Distribution valve(S) |
valve |
|
Pumping cylinder diameter/ Stroke(mm) |
200/1800 |
|
Main oil pump discharge(ml/r) |
2×190 |
|
Motor power(kw) |
2×110 |
|
Voltage/ Frequency(V/Hz) |
380/50 |
|
Hydraulic tank volume(L) |
700 |
|
Height of adding material(mm) |
≤1450 |
|
Hopper volume(m3) |
0.7 |
|
Total mass(kg) |
7000 |
|
Concrete slump(mm) |
80-230 |
|
Aclinic Delivery distance(m) |
1300 |
|
Theory vertical pumping height(m) |
280 |
|
Dimension: L*W*H(mm) |
6400*2480*2350 |
