Concrete mixer plants by Haomei Machinery can meet your custom needs to increase your concrete mixing production efficiency and increase profit. As an experienced concrete mixer plants manufacturer and exporter of quality concrete mixer plants, Haomei Machinery offers all types of concrete mixer plants.
No matter you want dry concrete batching plants or wet concrete batching plant, large concrete plants or small concrete plants, we can always according to your production requirements to provide you with the corresponding program, which will meet your needs and the best concrete mixer plants design.
We provide two mode of concrete mixer plants, skip hoist type plants and belt type plants. You can choose either type according to your actual requirements. According to the mobility of a concrete mixer plants, we can divide our concrete mixer plants into stationary type and mobile type.

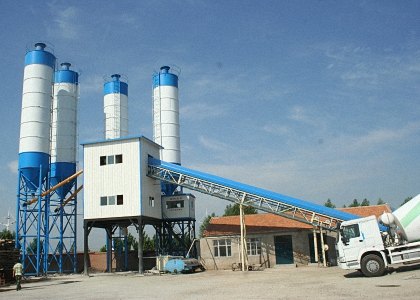

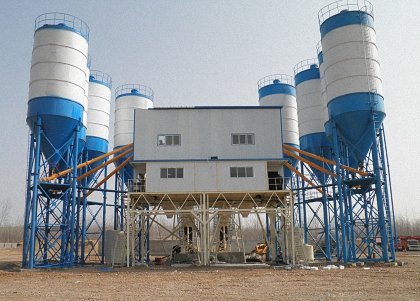

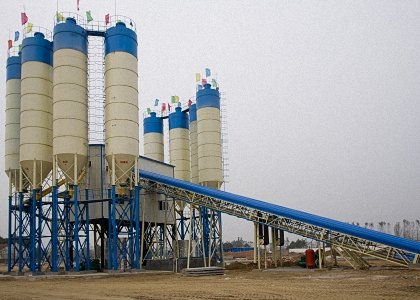

HZS series stationary concrete batching plant is widely used in big or medium building projects, road and bridges projects, precast concrete plants, etc. It is an ideal choice for producing commercial concrete. It has two feeding methods. One is hopper type, it is used for lower than 50m3 per hour output production.
The other is belt type, it is often used for higher than 60m3 per hour output production. For export, we adopt full automatic control system for our stationary concrete batching plant. It is PC+PLC control, which can vividly display the production process on the screen, so that the operator can monitor in real time.
| Type | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | |
| Theoretical production(m3/h) | 60 | 90 | 120 | 180 | 240 | |
| Concrete mixer | Type | JS1000 | JS1500 | MAO3000/2000 | MAO4500/3000 | MAO6000/4000 |
| Power(KW) | 18.5 | 65.5 | 74 | 110 | 150 | |
| Discharging capacity(L) | 1000 | 1500 | 2000 | 3000 | 4000 | |
| Aggregate size(mm) | 80/60 | 80/60 | 80 | 150 | 150 | |
| Aggregate Bin volume(m3) | 8.38 | 12 | 20 | 30 | 40 | |
| Belt conveying Capacity(t/h) | 300 | 450 | 550 | 650 | 900 | |
| Weighing Accuracy | Aggregate (KG) | 3000Kg ±2% | 3000Kg ±2% | 2200Kg ±2% | 3000Kg ±2% | 4200Kg ±2% |
| Cement(KG) | 1500Kg ±1% | 1500Kg ±1% | 1200Kg ±1% | 1800Kg ±1% | 2200Kg ±1% | |
| Fly ash(KG) | 600Kg ±1% | 900Kg ±1% | 400Kg ±1% | 500Kg ±1% | 800Kg ±1% | |
| Water (KG) | 600Kg ±1% | 600Kg ±1% | 500Kg ±1% | 800Kg ±1% | 1000Kg ±1% | |
| Additive(KG) | 50Kg ±1% | 50Kg ±1% | 50Kg ±1% | 80Kg ±1% | 80Kg ±1% | |
| Total power(KW) | 120Kw | 165Kw | 130Kw | 170KW | 220KW | |
| Discharging height(M) | 3.8 m | 4.1 m | 4.1m | 4.1m |
4.1m |
|
