Mobile concrete batching plant manufacturers |Haomei

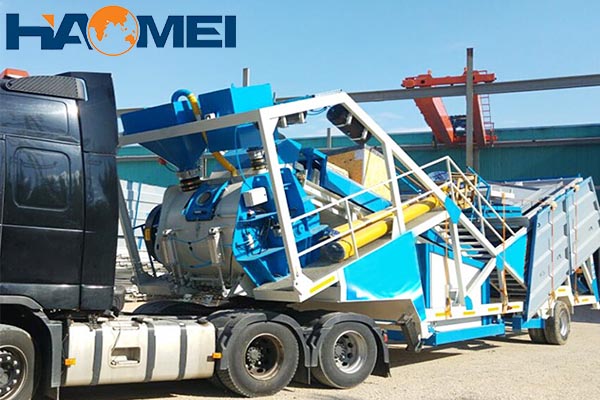

Brief Introduction：Among leading mobile concrete batching plant manufacturers in China, Haomei provides mobile concrete plants of the following configuration.

　　Among leading mobile concrete batching plant manufacturers in China, Haomei provides mobile concrete plants of the following configuration.

　　First, the components of the mobile concrete batching plant

　　1, the host chassis

　　(1) A cantilever-shaped mixing machine chassis, which includes a towing truck traction pin and a parking leg;

　　(2) The weighing scale of the mixer, cement, water and admixture is placed on the chassis;

　　(3) There are patrols, railings, etc. attached to the surrounding area.

　　2, control room

　　The control room is at the bottom of the main engine chassis, and has a fully automatic control system for the mixing station. When the working state is used, the control room serves as the front support point of the whole station. When the transfer is transported, the control room is collected and stored in the inner space of the bracket; all the control lines do not need to be disassembled.

　　3, aggregate ingredient measurement

　　Reliable mobile concrete batching plant manufacturers would choose the best measuring part which is located at the back end of the whole station, the upper part is the aggregate (sand, stone) storage hopper, the storage hopper can be divided into 2 or 4 grids, and the heightening plate is set to increase the storage capacity, pneumatically open the door operation, aggregate The measurement is a cumulative measurement method for a variety of materials. The bottom is equipped with a walking rear axle and frame legs for working.

　　4, peripheral components

　　The peripheral components are cement silos and screw conveyors. The peripheral components of a mobile concrete batching plant are integral parts when working or transporting, and do not need to be disassembled, so they can be transported and disassembled as a whole.
